MTFH01
Mantern
Introduction:

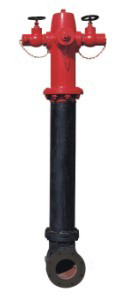

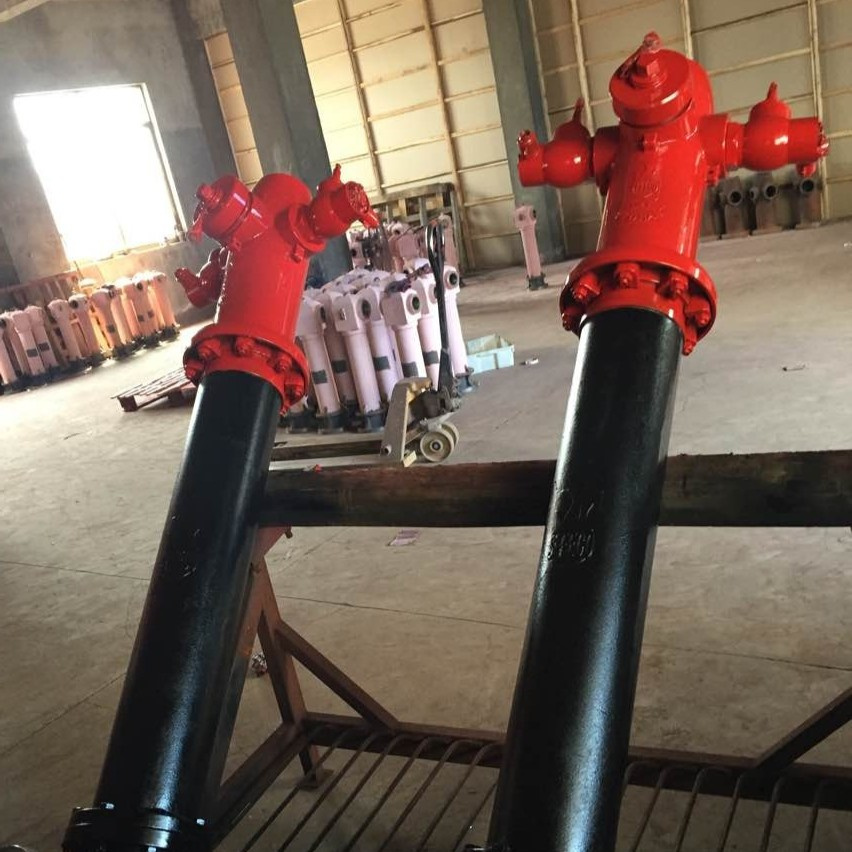

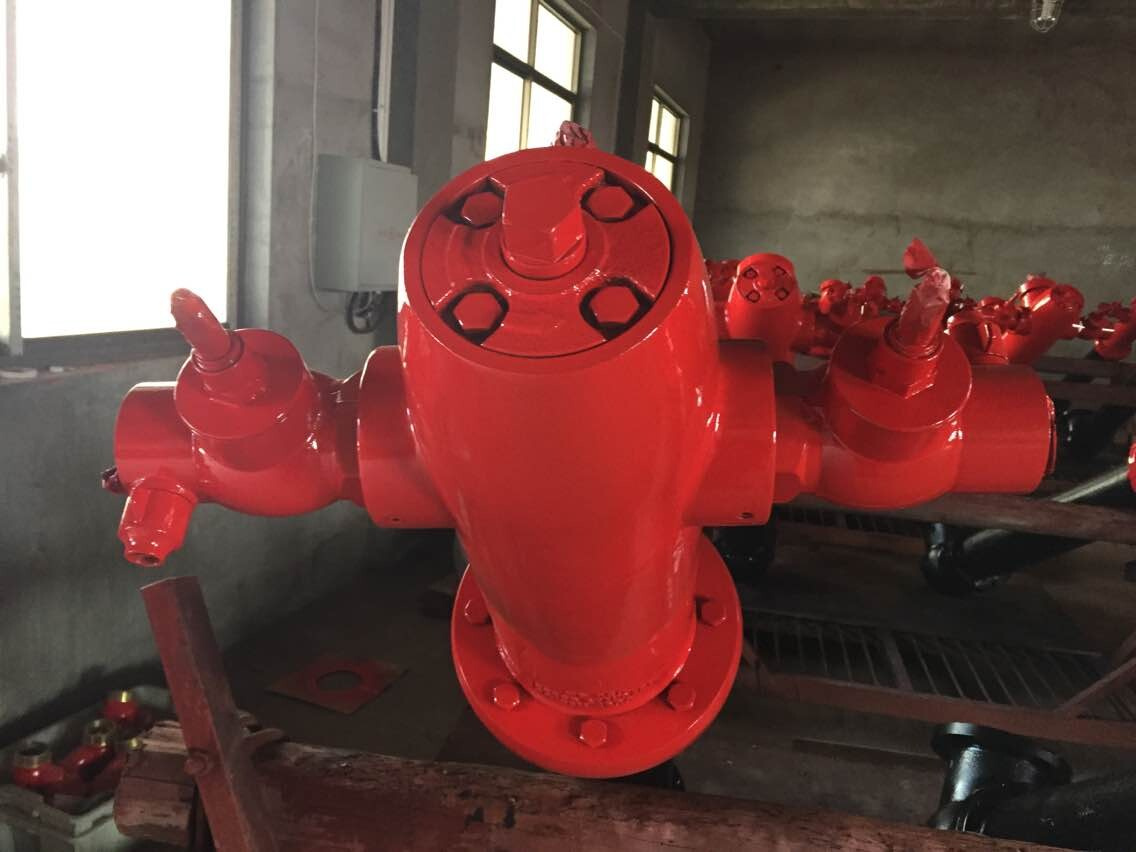

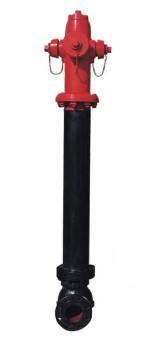

A Dry Type Pillar Fire Hydrant (also called a Dry Barrel Hydrant) is a type of fire hydrant commonly used in areas where temperatures can drop below freezing. Unlike wet barrel hydrants, the water does not stay in the hydrant’s barrel when it is not in use. Instead, the valve controlling the water flow is located below the frost line (underground), preventing water from freezing inside the hydrant.
Technical Data:
| Model No. | MTFH01 |
| Inlet | Flanged 100mm |
| Outlet | 2x2.5" straight through Landing Valve with cap & chain+1x4"; Pumper thread with cap and chain |
| Working Pressure | 16 bar |
| Seat Test Pressure | 20 bar |
| Body Test Pressure | 30 bar |
| Paint Details | Externally sandblasted for smooth finish, painted red with manual |
| Boday Material | Ductile iron or grey cast iron |
Suitable for cold/freezing climates.
Prevents standing water from freezing inside the hydrant.
Safer, since the main valve is underground.
Long service life with proper maintenance.
Applications
Municipal fire protection networks.
Industrial facilities.
Airports, ports, and refineries.
Any outdoor fire water distribution system in freezing regions.
Introduction:
A Dry Type Pillar Fire Hydrant (also called a Dry Barrel Hydrant) is a type of fire hydrant commonly used in areas where temperatures can drop below freezing. Unlike wet barrel hydrants, the water does not stay in the hydrant’s barrel when it is not in use. Instead, the valve controlling the water flow is located below the frost line (underground), preventing water from freezing inside the hydrant.
Technical Data:
| Model No. | MTFH01 |
| Inlet | Flanged 100mm |
| Outlet | 2x2.5" straight through Landing Valve with cap & chain+1x4"; Pumper thread with cap and chain |
| Working Pressure | 16 bar |
| Seat Test Pressure | 20 bar |
| Body Test Pressure | 30 bar |
| Paint Details | Externally sandblasted for smooth finish, painted red with manual |
| Boday Material | Ductile iron or grey cast iron |
Suitable for cold/freezing climates.
Prevents standing water from freezing inside the hydrant.
Safer, since the main valve is underground.
Long service life with proper maintenance.
Applications
Municipal fire protection networks.
Industrial facilities.
Airports, ports, and refineries.
Any outdoor fire water distribution system in freezing regions.
