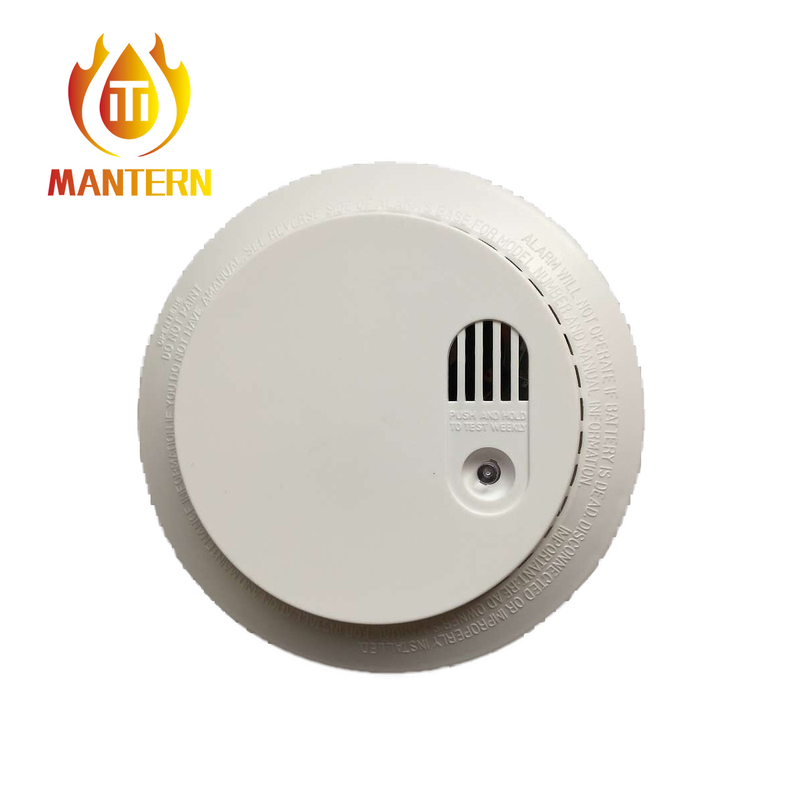

Battery Operated Photoelectronic Smoke Alarm

9V Photoelectric smoke detector (hereinafter called detector) detects the smoke by a couple of infrared diodes. The principle of detecting is granule in the smoke can reflect infrared light. Infrared diodes are placed in the special chamber. The chamber can shield external light, but don’t affect the smoke into it. While have no smoke, the diode can receive very weak infrared light. When the smoke entering the detector, the diode can receive strong infrared light.
Availability:
Quantity:
  • MTSD12
  • Mantern

Features:
1. Easy operation

2. Compact size
3. SMT Design, High stability
4. 9V DC battery operated
5. MCU automatic processing technology
6. Manual test
7. Auto reset
8. AUtomatic detecting
9. Sound-light alarm
10. Strong adaptability for circumstance

11. Dust proof, insect proof, anti-visible light

Technical Data:
Photoelectronic Smoke Alarm
Model: MTSD12

Operation voltage: DC9V or AC110-220V

Alarm current: ≤10mA; ≤40mA (wireless type)

Sound level: 85dB
Indicate alarm: Red LED flash

Working temperature: -10ºC - 50ºC
Working Humidity: <95%RH

Installation: Ceiling-mounted

Detecting area: 40 square meters when installation height between 6-12 meters. 20 square meters when installation height within 6 meters

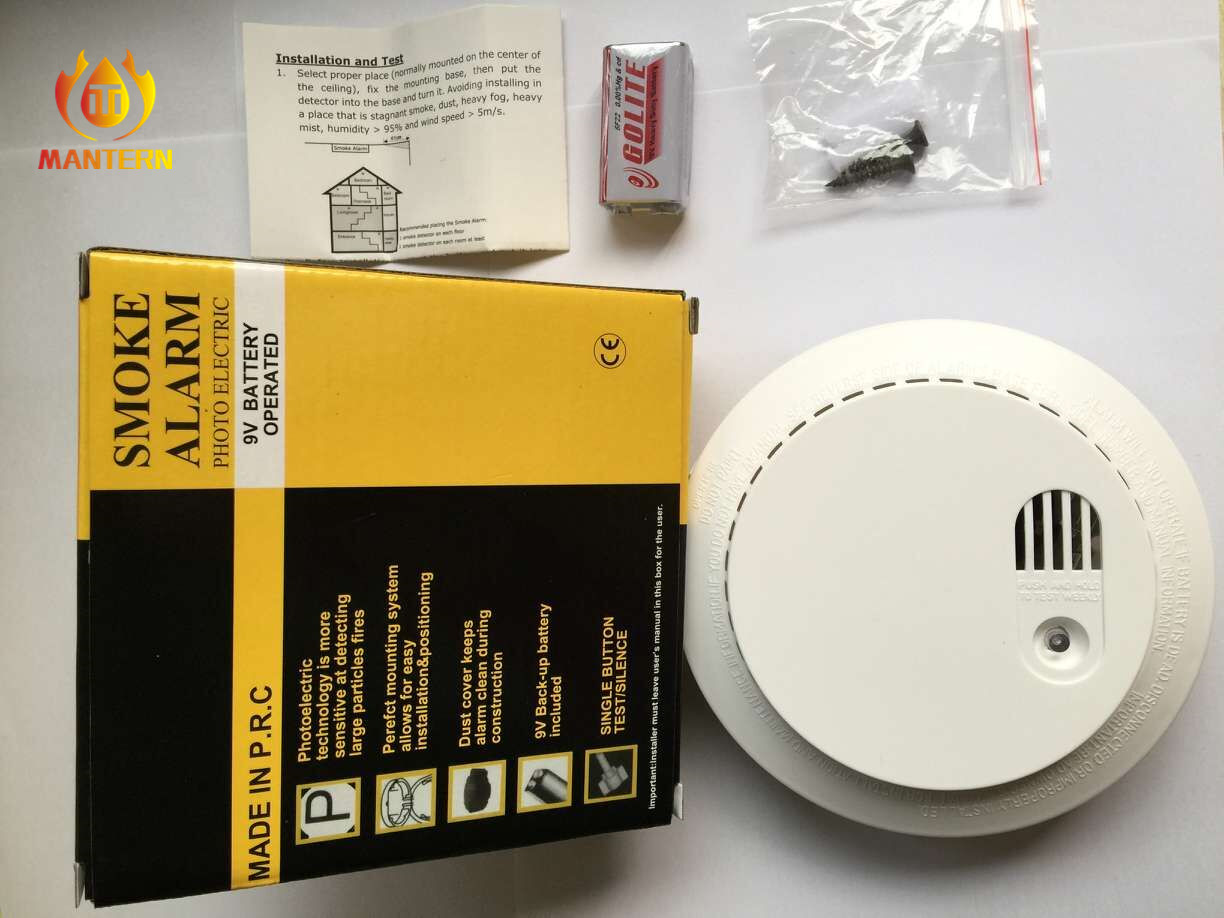

MTSD12 2

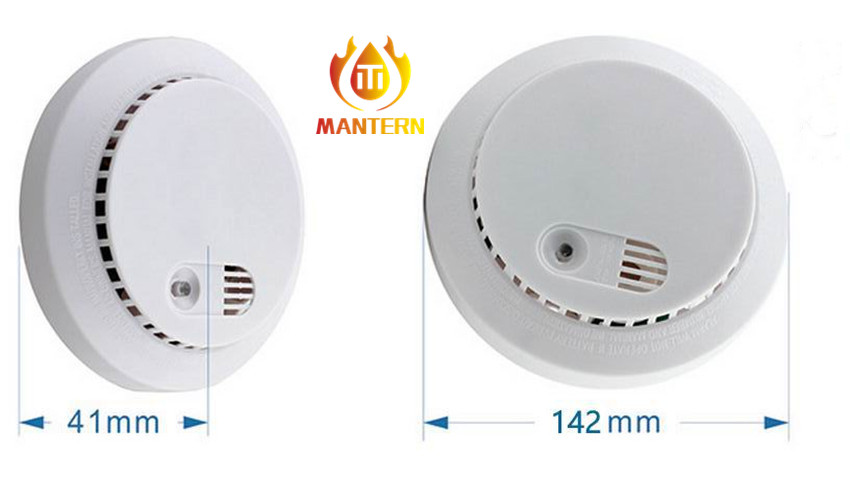

MTSD12 3

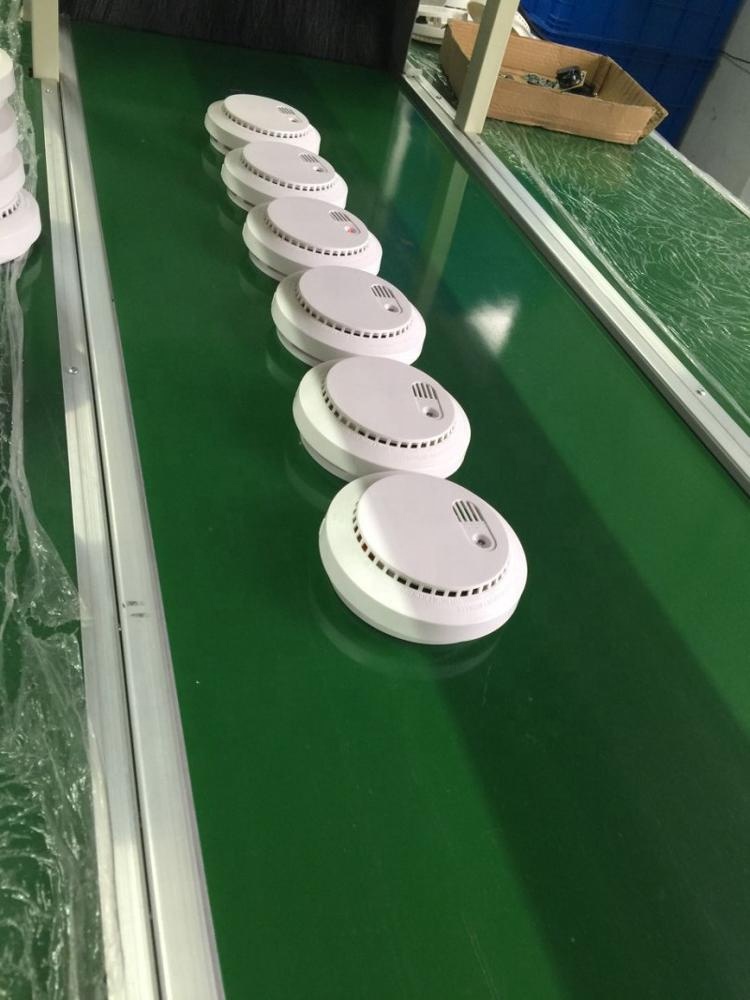

MTSD12 9

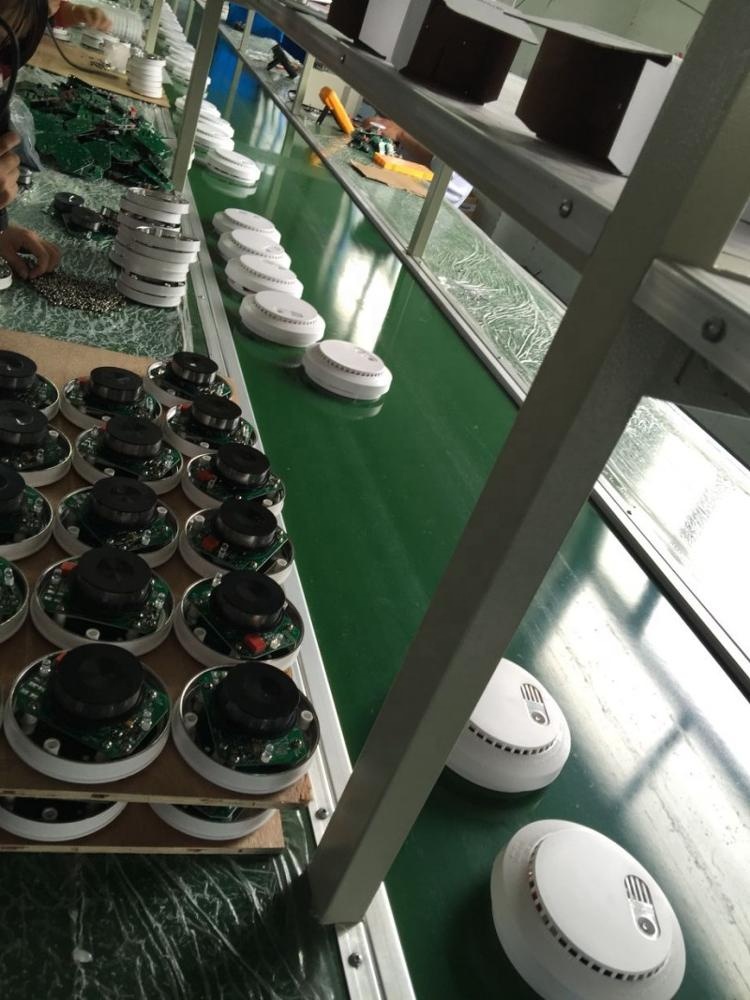

MTSD12 10
