MTAB01
Mantern
Features:

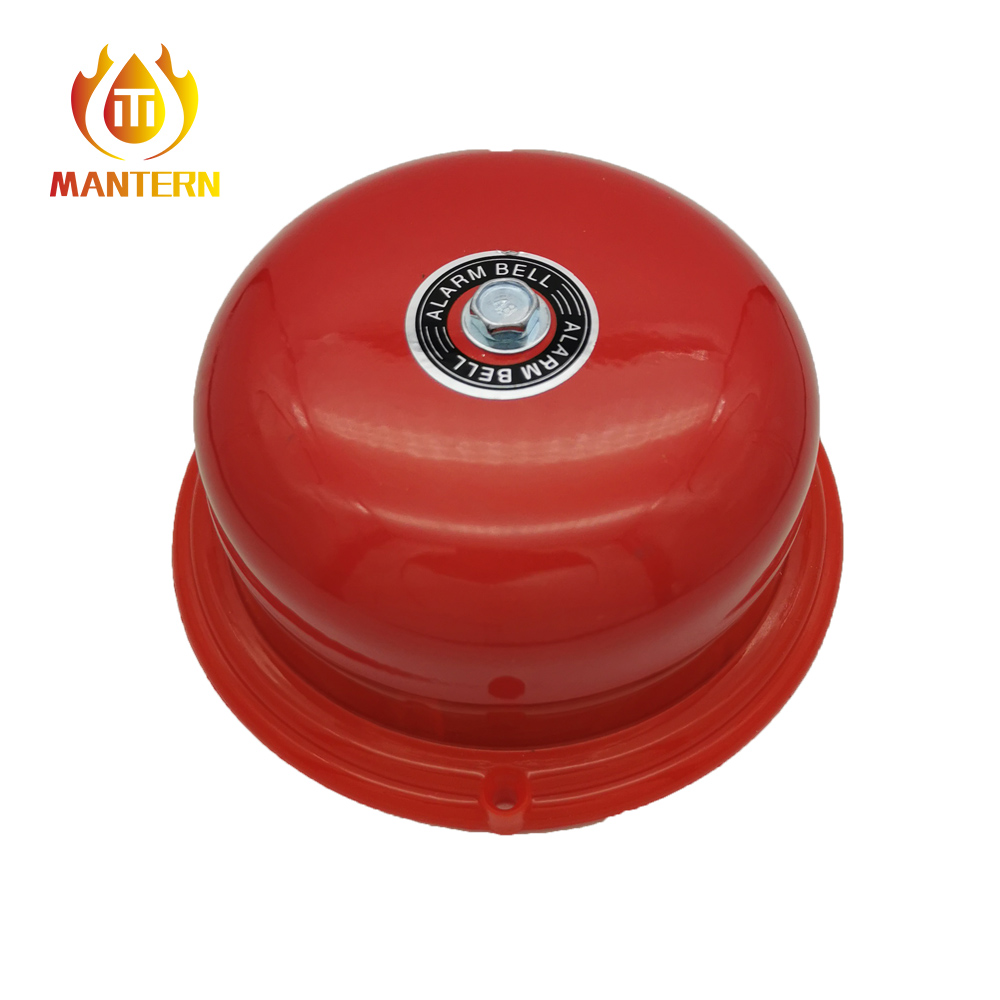

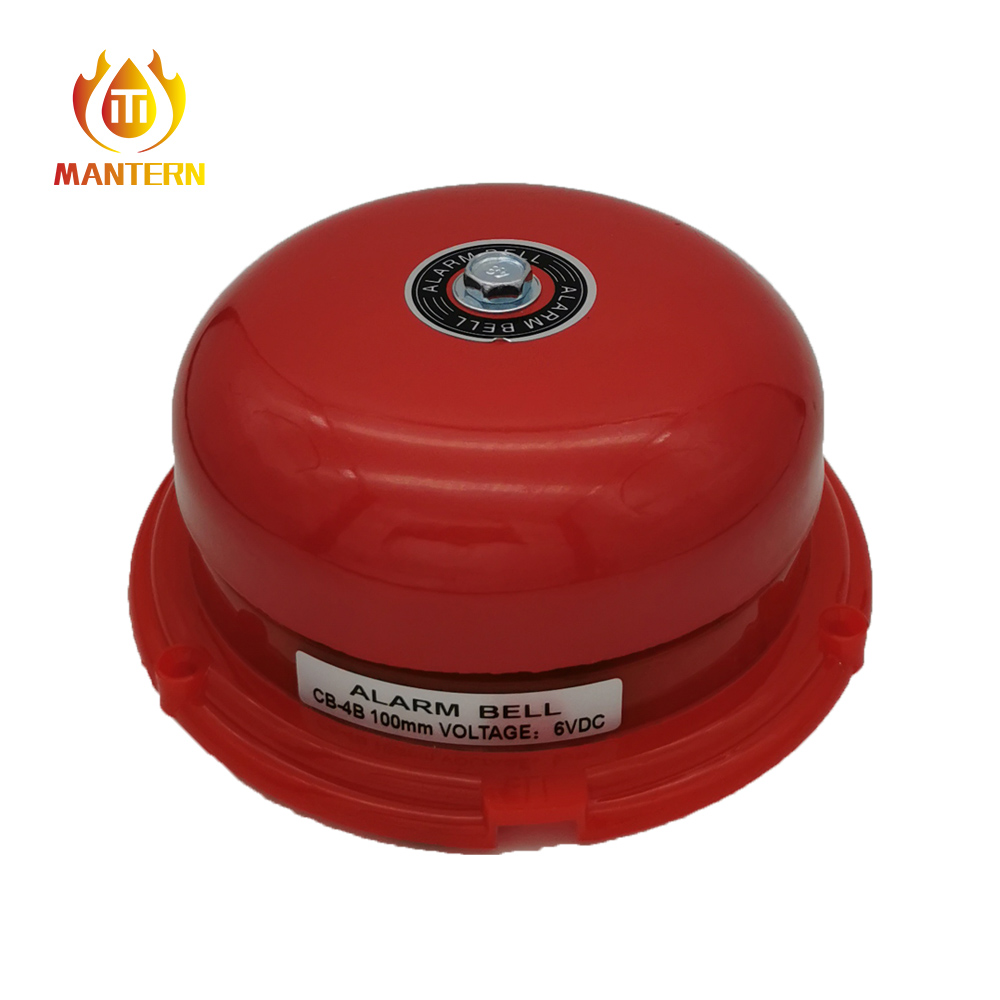

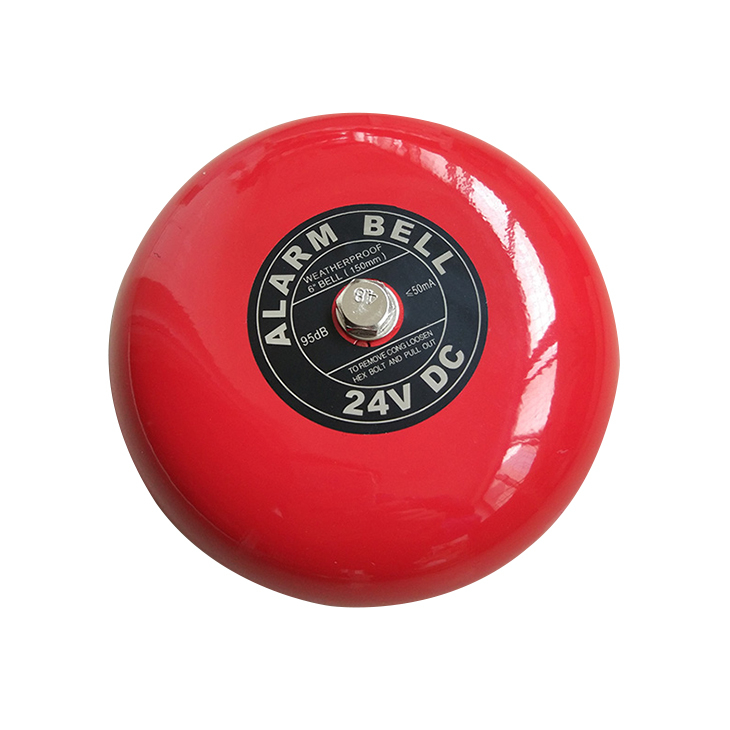

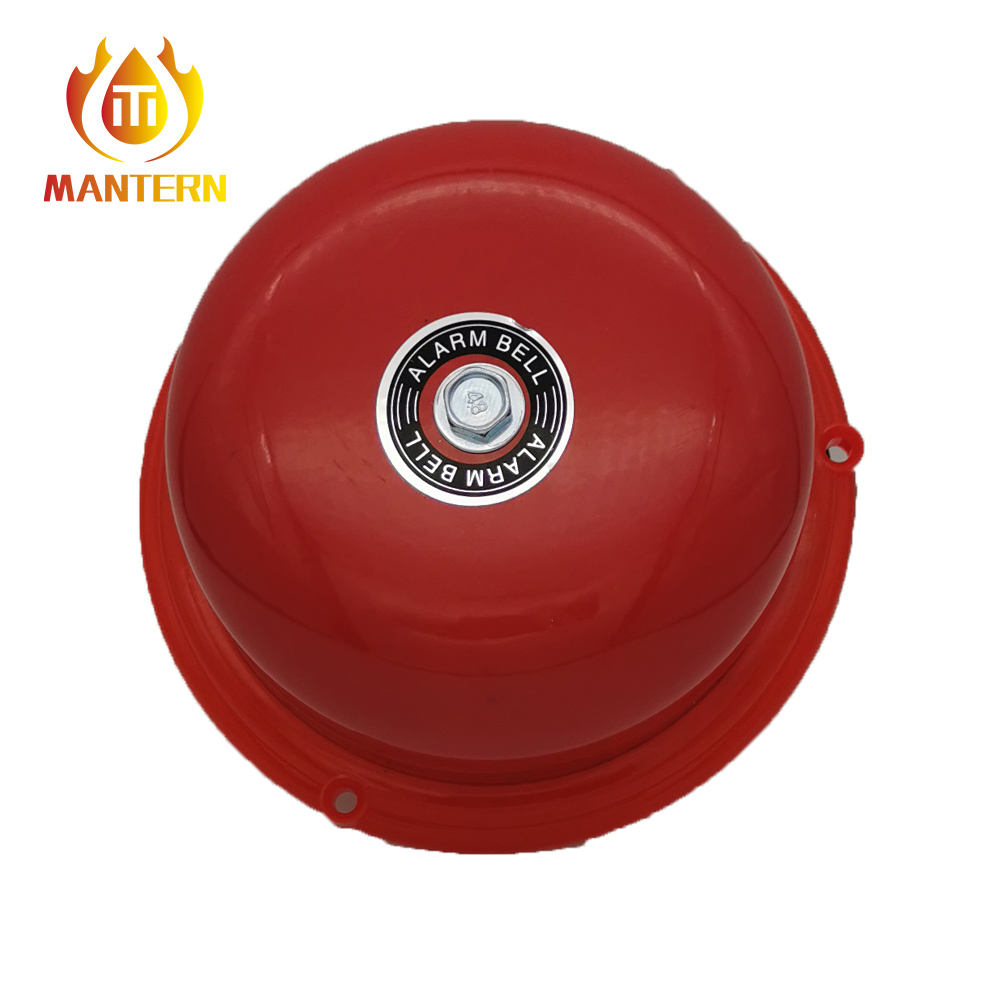

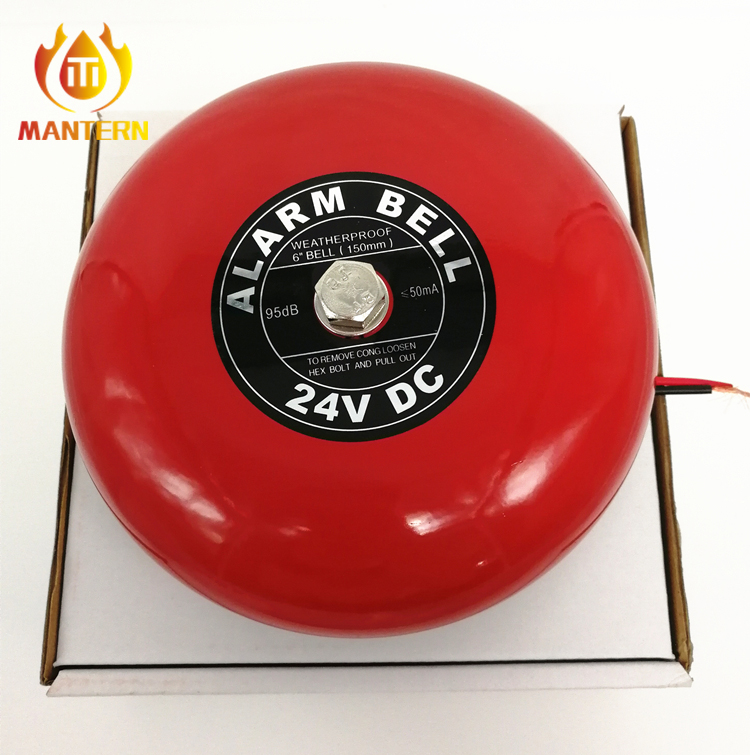

2-wire conventional fire alarm electric bell
A wide range of Sound
Red, for conventional fire alarm system,high quality.
DC6V, DC24V, AC220V Optional
Compatible with all the conventional fire alarm control panel
High sound level up to 110db max.
Steel material
Diameter 4", 6", 8", 10" Optional
Technical Data:
| Model No. | MTAB01 |
| Operation Voltage | DC 12V/24V, AC240V/110V Optional |
| Alarm Current | Max. 30mA @ 12V DC |
| Sound Level | Max. 110dB |
| Working Relative Humidity | ≤93%RH |
| Working Temperature | -10℃~+60℃ |
| Input Terminal Wire Gauge | 12 to 18 AWG |
| Size | Diameter 150mm, Height 61mm |
Features:
2-wire conventional fire alarm electric bell
A wide range of Sound
Red, for conventional fire alarm system,high quality.
DC6V, DC24V, AC220V Optional
Compatible with all the conventional fire alarm control panel
High sound level up to 110db max.
Steel material
Diameter 4", 6", 8", 10" Optional
Technical Data:
| Model No. | MTAB01 |
| Operation Voltage | DC 12V/24V, AC240V/110V Optional |
| Alarm Current | Max. 30mA @ 12V DC |
| Sound Level | Max. 110dB |
| Working Relative Humidity | ≤93%RH |
| Working Temperature | -10℃~+60℃ |
| Input Terminal Wire Gauge | 12 to 18 AWG |
| Size | Diameter 150mm, Height 61mm |
