| Quantity: | |
|---|---|
MTVLOFA
Mantern

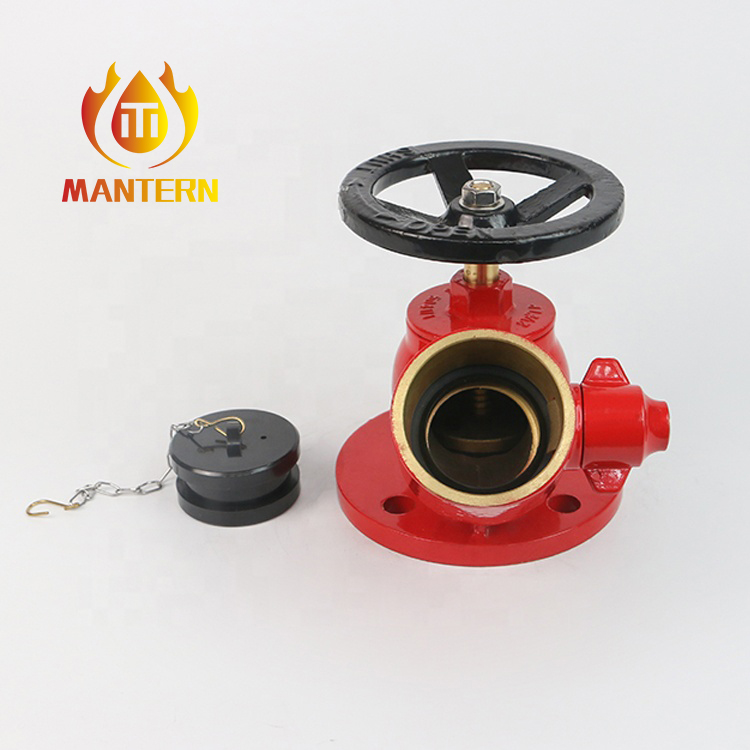

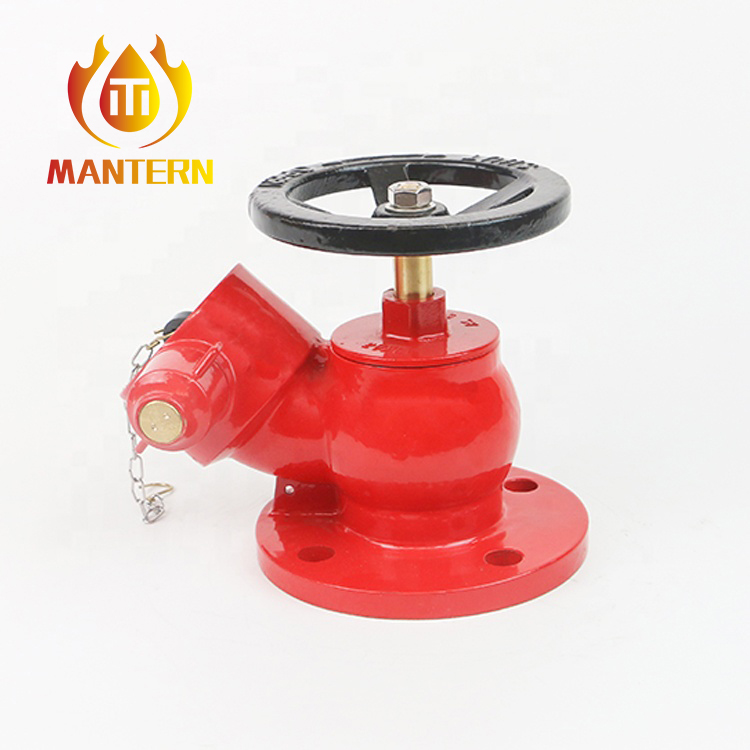

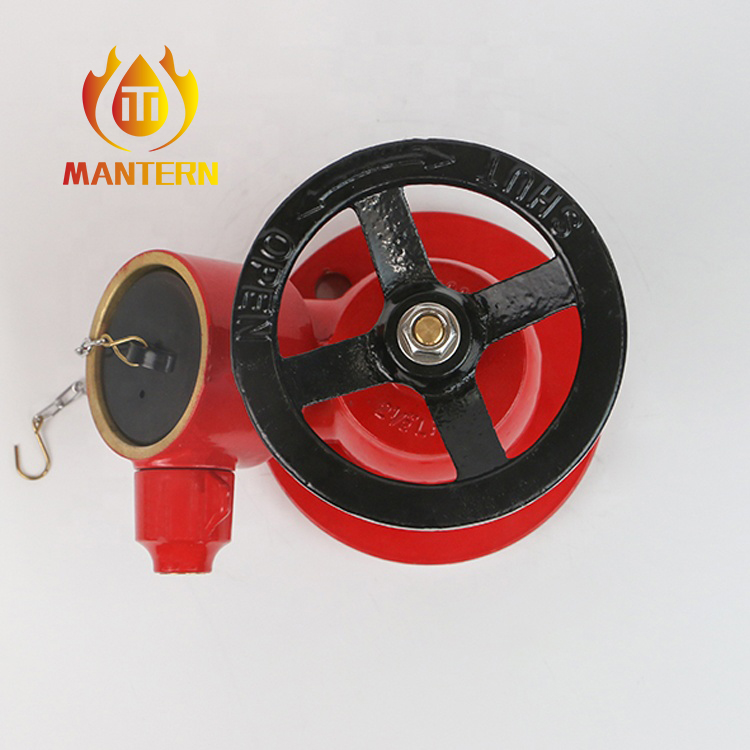

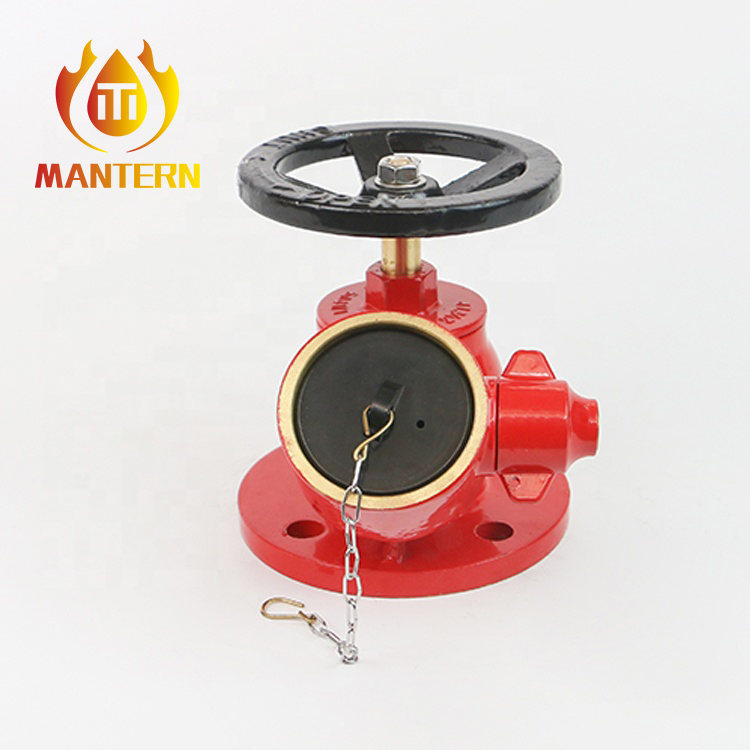

Oblique landing valves are suitable for installation on wet risers in a building for fire fighting purposes with permanently charged water from a pressurised supply.
The landing valves are oblique type with flanged inlet and are manufactured to comply to BS 5041 Part 1 standard with delivery hose connection and blank cap complying with BS 336:2010 standard.
The landing valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bar.
Applications
Installed on wet risers in high-rise buildings at every floor landing for firefighting access.
Provides a reliable water outlet for the fire service to connect hoses.
Suitable for commercial, residential, and industrial buildings requiring internal fire hydrant systems.
Advantages of Oblique Landing Valves
Strong and durable connection (flanged joint is more robust than screwed type).
Easy to install and maintain.
Withstands high water pressure during firefighting.
Compatible with standard fire hose couplings.
Technical Data:
| Model No. | MTVLOFA |
| Body Material | Copper Alloy |
| Inlet | 2.5" BS4504 |
| Outlet | 2.5"BS 336 Female coupling with plastic cap & chain |
| Pressure Rating | Low pressure valve |
| Test Pressure | Valve seat test at 16.5 bar Body test at 22.5 bar |
| Water Flow Rate | 8.5 L/S @ 4bar outlet pressure |
Oblique landing valves are suitable for installation on wet risers in a building for fire fighting purposes with permanently charged water from a pressurised supply.
The landing valves are oblique type with flanged inlet and are manufactured to comply to BS 5041 Part 1 standard with delivery hose connection and blank cap complying with BS 336:2010 standard.
The landing valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bar.
Applications
Installed on wet risers in high-rise buildings at every floor landing for firefighting access.
Provides a reliable water outlet for the fire service to connect hoses.
Suitable for commercial, residential, and industrial buildings requiring internal fire hydrant systems.
Advantages of Oblique Landing Valves
Strong and durable connection (flanged joint is more robust than screwed type).
Easy to install and maintain.
Withstands high water pressure during firefighting.
Compatible with standard fire hose couplings.
Technical Data:
| Model No. | MTVLOFA |
| Body Material | Copper Alloy |
| Inlet | 2.5" BS4504 |
| Outlet | 2.5"BS 336 Female coupling with plastic cap & chain |
| Pressure Rating | Low pressure valve |
| Test Pressure | Valve seat test at 16.5 bar Body test at 22.5 bar |
| Water Flow Rate | 8.5 L/S @ 4bar outlet pressure |
Mantern Industrial Co., Ltd. is engaged in international business since 2012. Our aim is to provide good products with competitive price for our clients.
