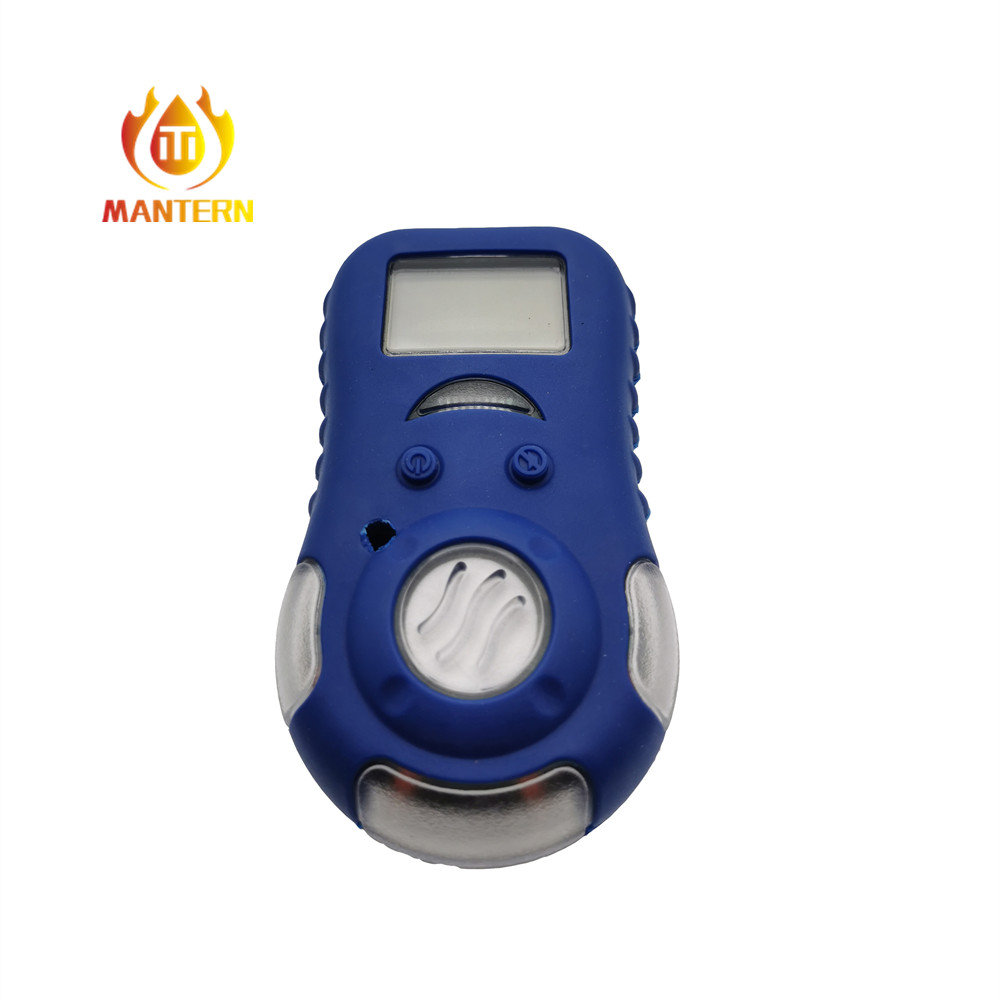

Portable Single Gas Detector for NH3

Portable single gas NH3 detector is an instrument that can continuously detect the concentration of toxic and hazardous, flammable gas in operating environment. Detector tests gas concentration using the way of natural diffusion, using imported sensor which has excellent sensitivity and excellent repeatability; Instruments use embedded micro-control technology, have a simple menu operation, complete functions and high reliability, with a variety of adaptive capacity; Using LCD display, intuitive and clear; Compact and portable design aesthetic is easy for using when moving.
Detector shell is made of PC, TPR refined, high-strength, heat resistance, corrosion resistance, and feel better. This product is suitable for detecting the concentration of toxic gases in ambient air, widely used in metallurgy, power plants, chemical industry, mines, tunnels, trenches, underground pipelines and other places, to effectively prevent the occurrence of poisoning.
Availability:
Quantity:
  • MTPG10 NH3
  • Mantern

1. Instrument Charging time: 3 to 6 hours

2. Charging voltage: DC5V (DC)

3. Using time: about 20 hours of gas, other gases than a week

4. Detection of gas type: oxygen, combustible gas, carbon monoxide, hydrogen sulfide and other toxic gases

5. Working environment: Temperature 0 ~ 50 °; relative humidity <95%

6. Response time: oxygen <30S; monoxide <40S; combustible <20S; hydrogen sulfide <40S (other omitted).

7. Instrument Dimensions: L * W * H; 108mm × 61mm × 40mm

8.  Alarm: sound, light, vibration alarm


Measured gas

Technical indicators

Measurement Range

Resolution

Alarm

CO

Carbon monoxide

0-1000ppm

1ppm

50ppm

H2S

Hydrogen sulfide

0-100ppm

1ppm

10ppm

H2

Hydrogen

0-1000ppm

1ppm

35ppm

SO2

Sulfur dioxide

0-100ppm

1ppm

5ppm

NH3

Ammonia

0-200ppm

1ppm

35ppm

NO

Nitric oxide

0-200ppm

1ppm

35ppm

NO2

Nitrogen dioxide

0-20ppm

1ppm

5ppm

CL2

Chlorine

0-20ppm

1ppm

2ppm

O3

Ozone

0-50ppm

1ppm

2ppm

O2

Oxygen

0-30%vol

0.1%vol

below 18%vol

above 23%vol

EX

Flammable

0-100%LEL

1%LEL

25%LEL

CO2

Carbon Dioxide

0-5%vol

0.001%vol

0.2%vol
