MTVLRF
Mantern

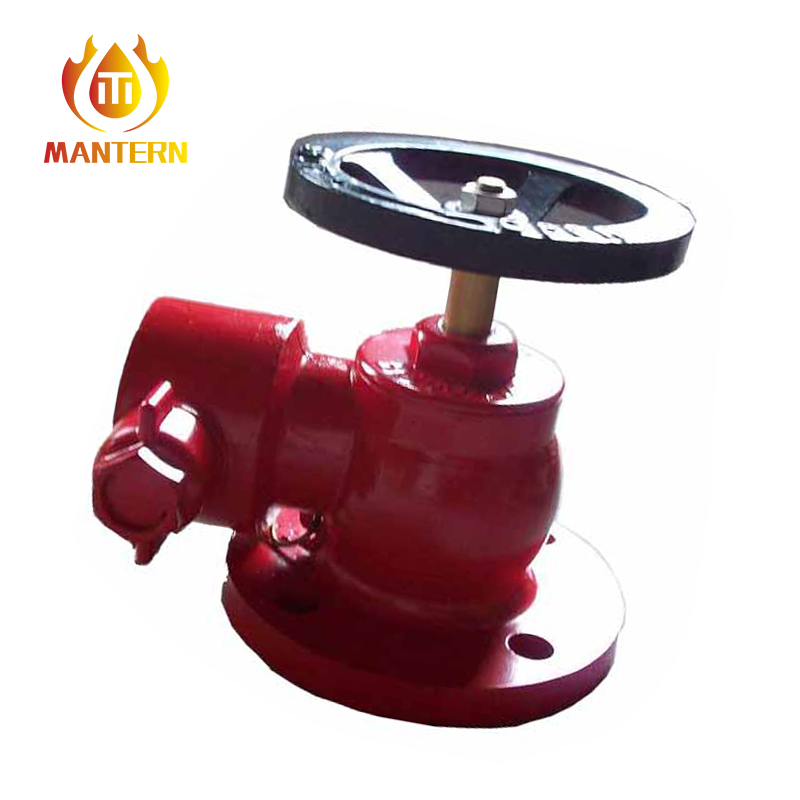

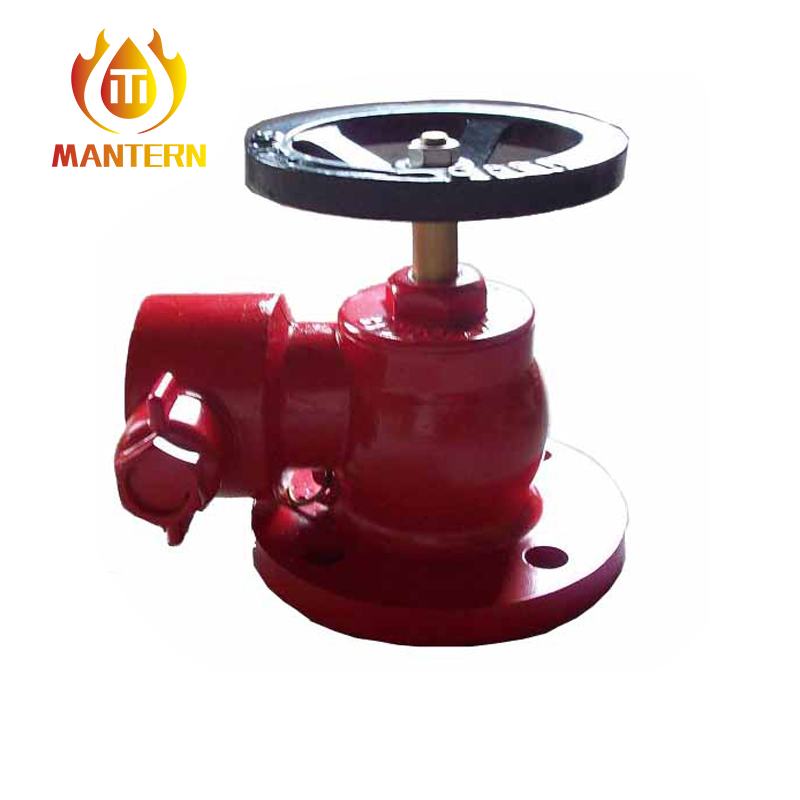

Right Angle Type Landing Valve is a type of fire hydrant / landing valve used in wet riser (and sometimes dry riser) systems inside buildings. Unlike the oblique type (45°) landing valve, the right-angle valve has a 90° outlet, which makes the hose connection point perpendicular to the inlet pipe. This design is widely used where space is less restricted and a neat, direct hose connection is preferred.
Applications
Installed on wet risers in stairwells or lobbies of high-rise buildings.
Provides firefighters with quick and secure access to water supply.
Common in compact riser cupboards where space is tight, since the outlet doesn’t protrude at an angle like oblique type.
Advantages of Oblique Landing Valves
Compact design – ideal for tight spaces.
Strong and durable construction.
Easy hose connection at 90° outlet.
Reliable under high pressure firefighting conditions.
Technical Data:
| Model No. | MTVLRF |
| Body Material | Copper Alloy |
| Inlet | 2.5" BS4504 Flanged type |
| Outlet | 2.5"BS 336 Female coupling with plastic cap & chain |
| Pressure Rating | Low pressure valve |
| Test Pressure | Valve seat test at 16.5 bar Body test at 22.5 bar |
| Water Flow Rate | 8.5 L/S @ 4bar outlet pressure |
Right Angle Type Landing Valve is a type of fire hydrant / landing valve used in wet riser (and sometimes dry riser) systems inside buildings. Unlike the oblique type (45°) landing valve, the right-angle valve has a 90° outlet, which makes the hose connection point perpendicular to the inlet pipe. This design is widely used where space is less restricted and a neat, direct hose connection is preferred.
Applications
Installed on wet risers in stairwells or lobbies of high-rise buildings.
Provides firefighters with quick and secure access to water supply.
Common in compact riser cupboards where space is tight, since the outlet doesn’t protrude at an angle like oblique type.
Advantages of Oblique Landing Valves
Compact design – ideal for tight spaces.
Strong and durable construction.
Easy hose connection at 90° outlet.
Reliable under high pressure firefighting conditions.
Technical Data:
| Model No. | MTVLRF |
| Body Material | Copper Alloy |
| Inlet | 2.5" BS4504 Flanged type |
| Outlet | 2.5"BS 336 Female coupling with plastic cap & chain |
| Pressure Rating | Low pressure valve |
| Test Pressure | Valve seat test at 16.5 bar Body test at 22.5 bar |
| Water Flow Rate | 8.5 L/S @ 4bar outlet pressure |
Mantern Industrial Co., Ltd. is engaged in international business since 2012. Our aim is to provide good products with competitive price for our clients.
